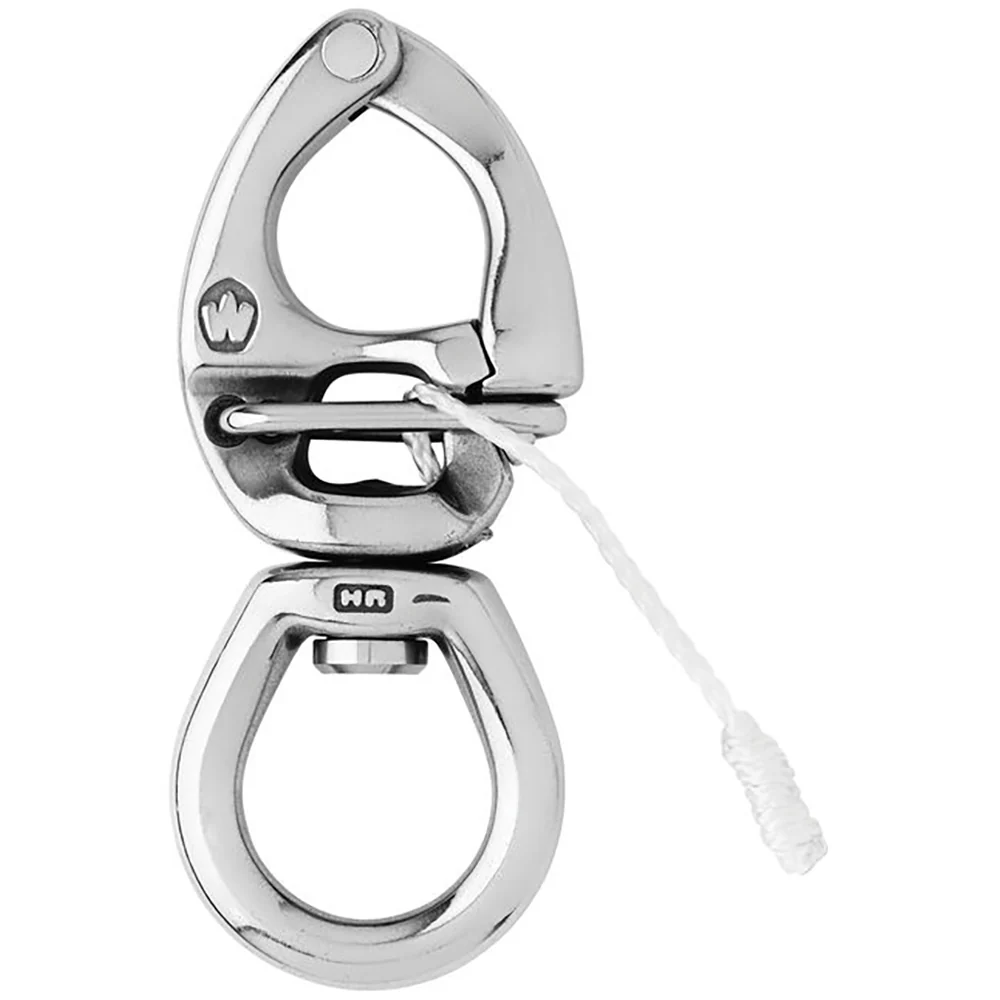

Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64" [2777W]

HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"

Features:

• HR forged (17.4 PH) quick-release snap shackle with large bail
• The opening is made by pulling the lanyard
• Perfect to attach several lines (spinnaker sheets...)
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect to attach several lines: spinnaker sheets...

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 6170 / (kg) 2800
• Breaking load: (lb) 13880 / (kg) 6300
• Weight: (lb) 0.873 / (g) 396

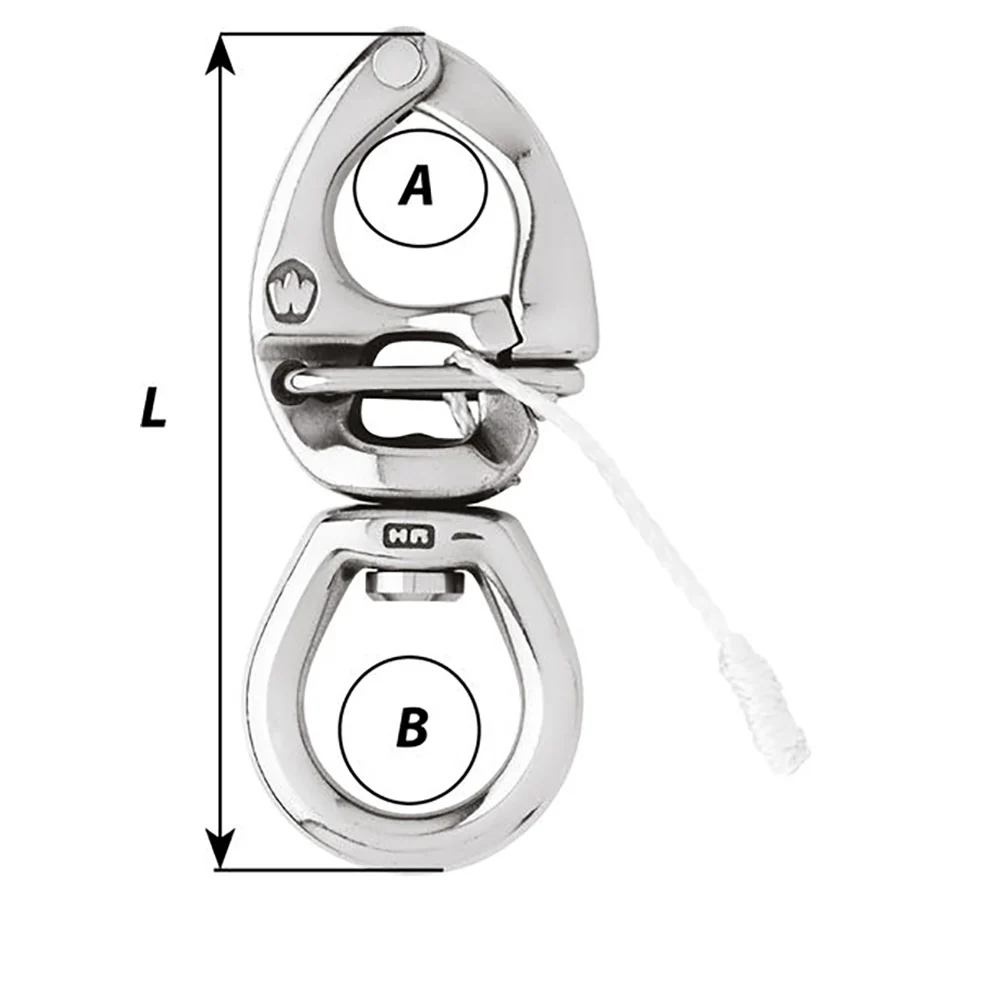

Dimensions:

• A: (inch) 1 3/16" / (mm) 30
• B: (inch) 1 25/64" / (mm) 35.5
• Length: (inch) 5 45/64" / (mm) 145

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

Quick Guide (pdf)
