Wichard Captive Pin D Shackle - Diameter 6mm - 1/4" [1403W]
HomeStore

Wichard Captive Pin D Shackle - Diameter 6mm - 1/4" [1403W]

Wichard Captive Pin D Shackle - Diameter 6mm - 1/4" [1403W]

Captive Pin D Shackle - Diameter 6mm - 1/4"

Features:

  • Captive pin "D" shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Standard applications of shackle
  • Attachment applications: blocks, head...

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1490
  • WLL (lb) 970
  • Breaking load (lb) 4850
  • Weight (lb) 0.062

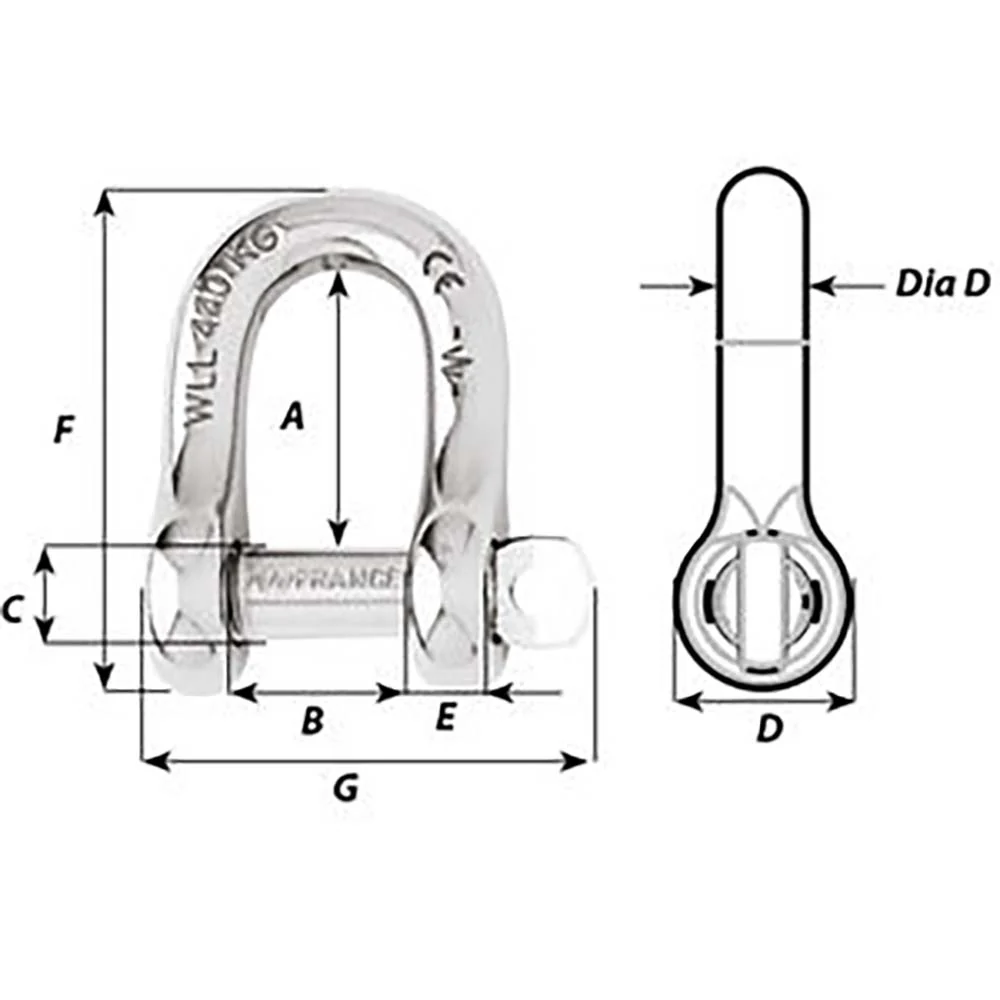

Dimensions (see 2nd image):

  • A (inch) 25/32"
  • B (inch) 15/32"
  • C (inch) 9/32"
  • D (inch) 35/64"
  • D diameter (inch) 15/64"
  • E (inch) 15/64"
  • F (inch) 1-27/64"
  • G (inch) 1-17/64"
$34.35
