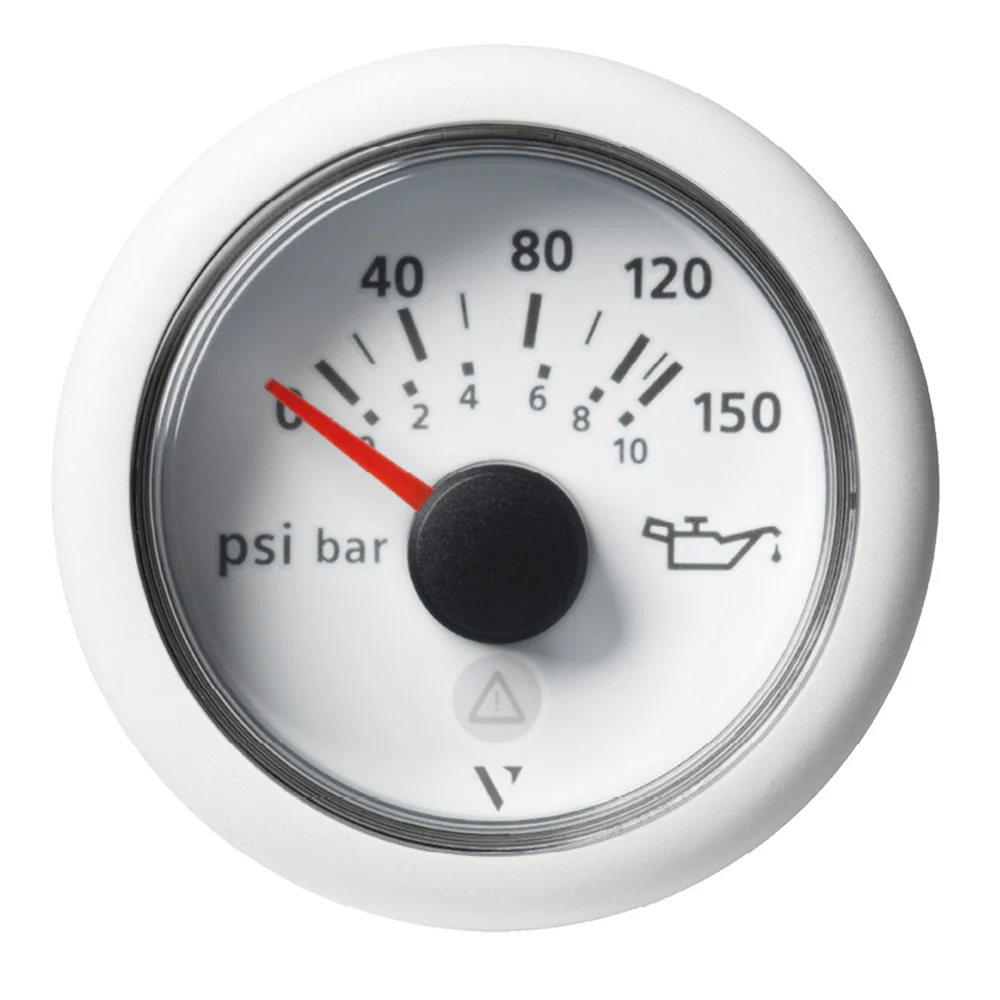

Veratron 52mm (2-1/16") ViewLine Engine Oil Pressure Gauge - 150 PSI - White Dial Bezel [A2C59514202]

52mm (2-1/16") ViewLine Engine Oil Pressure Gauge - 150 PSI -  White Dial & Bezel

Veratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring.

More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use.  ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.

The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in the identical color.

Interchangeable bezel option.

Features:

• 8 pole Tyco / Hirschmann MQS plug
• +/- 3.6° angle degree accuracy over the entire display range
• Operating voltage 8–32 V
• Integrated warning alarm
• Input signal: standard Ω values
• An optional make-point switch can be connected
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 52 mm installation diameter
• 50 mm installation depth

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Box Set: No
• Gauge Size: 2-1/16"
• Gauge Type: Oil Pressure
• Series: ViewLine
• Voltage - Input Range (Volts): 8-32v
• Box Dimensions: 3"H x 3"W x 4"L WT: 0.3 lbs
• UPC: 7640178723177
