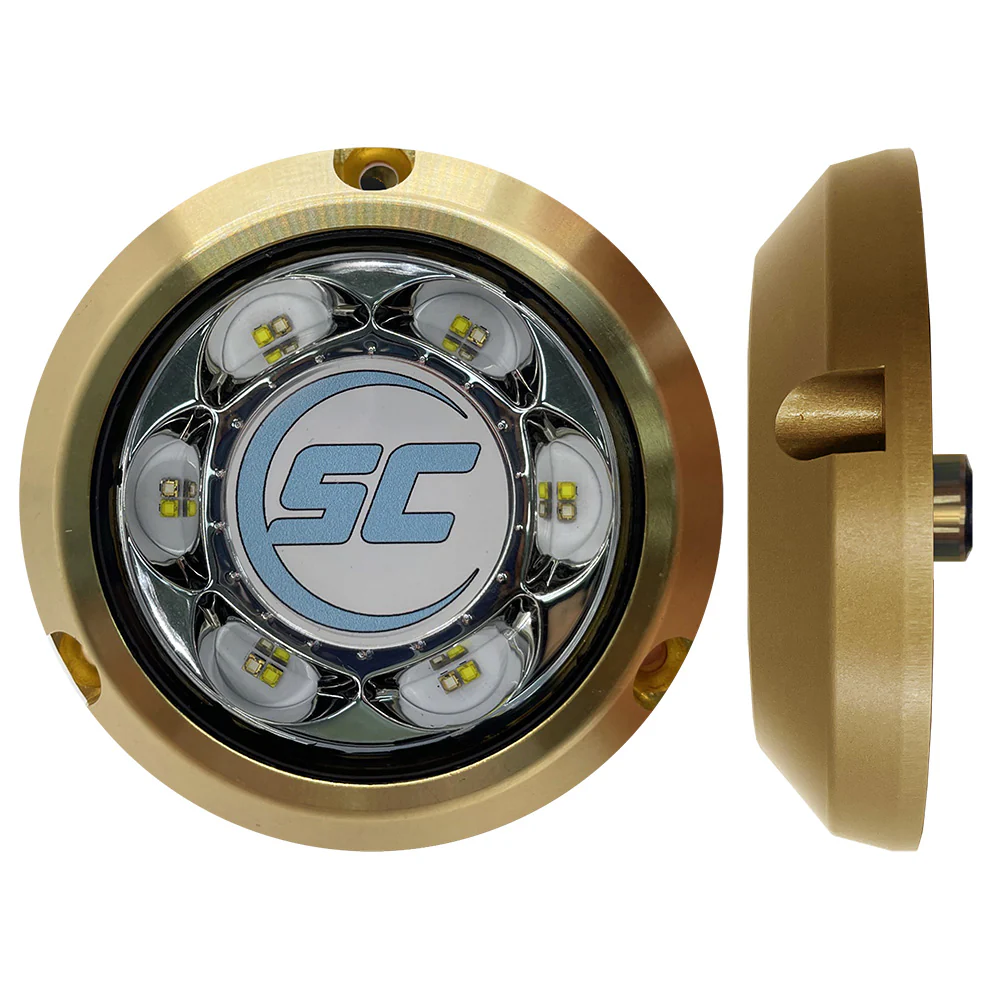

Shadow-Caster SC3 Series Bimini Blue Bronze Surface Mount Underwater Light [SC3-BB-BZSM]

SC3 Series Bimini Blue Bronze Surface Mount Underwater Light

The SC3 underwater light provides your vessel with 24 watts of intense LED lighting. The SC3s are designed with a sub-compact 3.4-inch diameter bronze housing for under-the-waterline surface mounting.

Features:

• Proprietary clear gel-filled design, injected through the entire unit —eliminates condensation and water intrusion under stress
• Tough, scratch-resistant, tempered glass lens with bronze housing — impervious to acetone, and solvents common in demanding marine environments
• Transient surge and reverse polarity protection — dramatically prolong unit life
• Thermal throttling technology — enables safe operation even out of water
• Can be operated from a standard on/off switch
• Use compatible Shadow-NET™ controller for full-feature lighting control

Specifications:

• Color: Bimini blue
• Up to 3,000 lumens
• 120-degree beam angle
• 24-watt power draw
• 2 amps operating current draw @ 12 v
• 10-30 volts input
• 3.4” (86mm) outside diameter
• IP68 fully submersible waterproof design

Includes:

• Lighting unit
• 3 ft. (1m) submersible grade cable
• 3 mounting screws
• 3-year standard warranty

2 Control Options:

• Power Toggle Control - Quickly toggle power source to advance to next color or brightness level
• Add Shadow-NET™ Control for CC versions - Dramatic, full-feature control through your Multifunction Display (MFD) by adding the Light Commander Shadow-NET™ control module (SCM-LC-PLUS) and app

Specifications:

• Color: Blue
• Material: Bronze
• Mounting Style: Surface
• Voltage - Input Range (Volts): 10-30
• Watts: 24
• Box Dimensions: 4"H x 5"W x 5"L WT: 1.55 lbs
• UPC: 8500243426824

Quick Guide (pdf)
