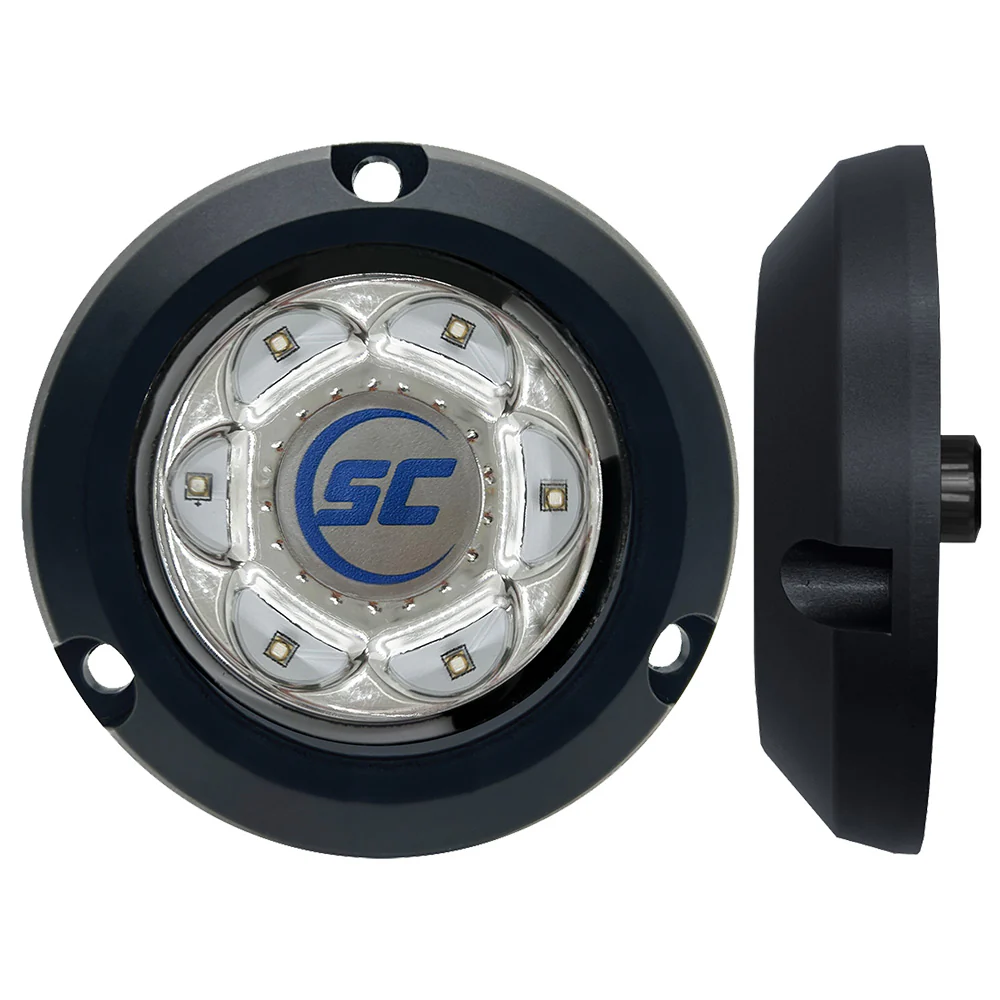

Shadow-Caster SC2 Series Polymer Composite Surface Mount Underwater Light - Bimini Blue [SC2-BB-CSM]

SC2 Series Polymer Composite Surface Mount Underwater Light - Bimini Blue

The SC2 underwater light provides a vessel with 24 watts of intense LED lighting. The SC2s are designed with a sub-compact 2.99" polymer composite for under-the-waterline surface mounting. Single-color and color-changing versions are available with variable brightness and a wide array of control options. This underwater light has a bimini blue color output.

Features:

• A proprietary clear gel-filled design, injected through the entire unit, eliminates condensation and/or water intrusion under stress
• Tough, scratch-resistant, tempered glass lens with polymer composite housing—impervious to acetone, solvents, and demanding marine environments
• Transient surge and reverse polarity protection dramatically prolong unit life
• Thermal throttling technology enables safe operation even in water
• From simple on-off to full-feature lighting effects, the unit is enabled for a host of control interfaces

Specifications:

• Color: Bimini blue
• Up to 3,000 lumens
• 120-degree beam angle
• 24-watt power draw
• 2 amps of operating current draw @ 12V
• 10-30 volts input
• 2.99” (75.9mm) outside diameter
• IP68 fully submersible waterproof design

Includes:

• Lighting unit
• 3’ (1m) submersible grade cable
• 3 mounting screws
• 3-year standard warranty

2 Control Options:

• Power Toggle Control - Quickly toggle the power source to advance to the next color or brightness level
• Add Shadow-NET™ Control - Dramatic, full-feature control through your Multifunction Display (MFD) by adding the Light Commander Shadow-NET™ control module (SCM-LC-PLUS) and app

Specifications:

• Color: Blue
• Material: Composite
• Mounting Style: Surface
• Voltage - Input Range (Volts): 10-30v
• Watts: 24

Quick Guide (pdf)
