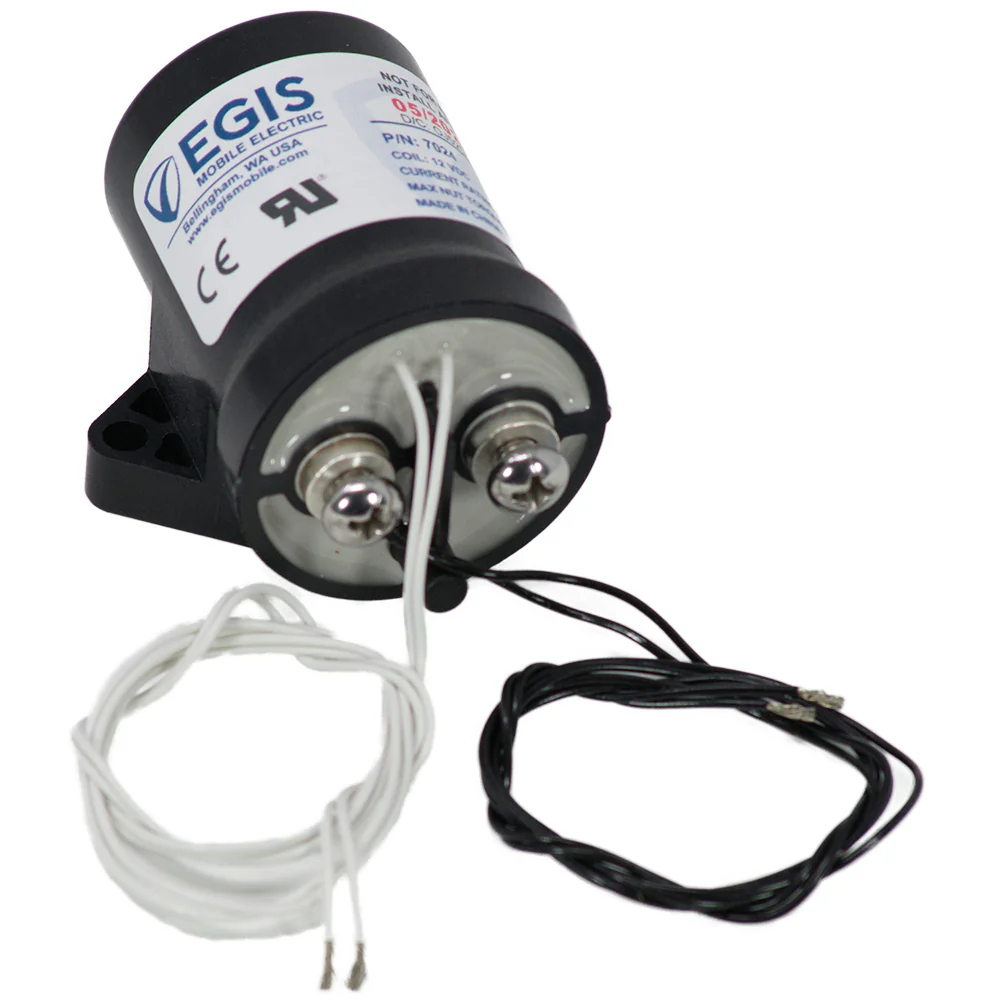

Egis Contactor 100A, 24V w/Aux Contacts [7026]
Contactor 100A, 24V with Aux Contacts
This 100A Egis contactor is perfect for reducing installation costs and weight by eliminating large cable runs to manual switches through robust remote switching of high-ampere engines and auxiliary loads. Also, this contactor has a side mount.
Applications:
- Ensure flawless operation for the life of the installation with a hermetically sealed contactor sealed against dust & moisture Intrusion.
- High Contact Voltage Rating easily supports 12 or 24 Vdc control voltage applications while also supporting higher switching voltage applications up to 48 V and well beyond.
- Get positive confirmation of the relay on/off state with optional auxiliary contacts that support remote status indication.
Features:
- Ignition is protected and safe for installation in closed compartments with potential explosive gases
- High Electrical Switching Endurance delivers 6,000 cycles at 100A / 350V, 100,000 cycles at 100A / 14V
- High Interrupt Current Capability - safely able to open in a locked starter situation (up to 1,250 A @ 14 Vdc)
- Bullet-proof Construction - sealed device, high-temperature materials for engine compartment applications, and stainless self-locking hardware.
- 4 Year Industry Leading Warranty
Specifications:
- Continuous Current (Amps): 100
- Operation Control Voltage: 16-28 VDC
- Ingress Protection: IP67/IP69K
- Ignition Protection: ISO-8846 / UL 1500
- Minimum Operate Temp. (Deg C): -40 C
- Max Operate Temp. (Deg C): 85
Focal Features:
Sealed Enclosure
Hermetically sealed against dust and moisture penetration. The high temperature rating for all installation locations.
18-8 Stainless Steel Self-Locking Hardware
It resists corrosion and ensures long-term connection reliability with premium hardware.
Easy Mounting
Reinforced mounting holes provide secure installation and easy attachment for the installer.
Remote Status Support
Optional auxiliary contacts that support remote status indication.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
