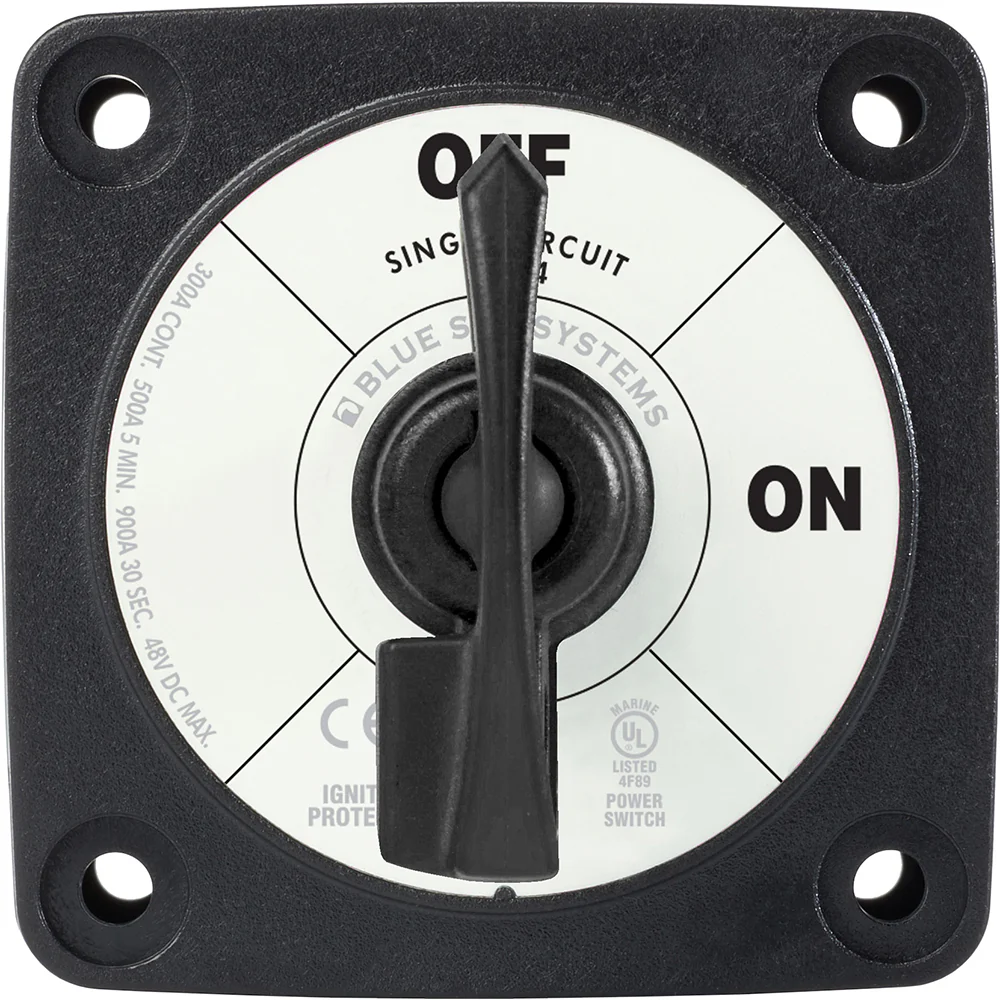

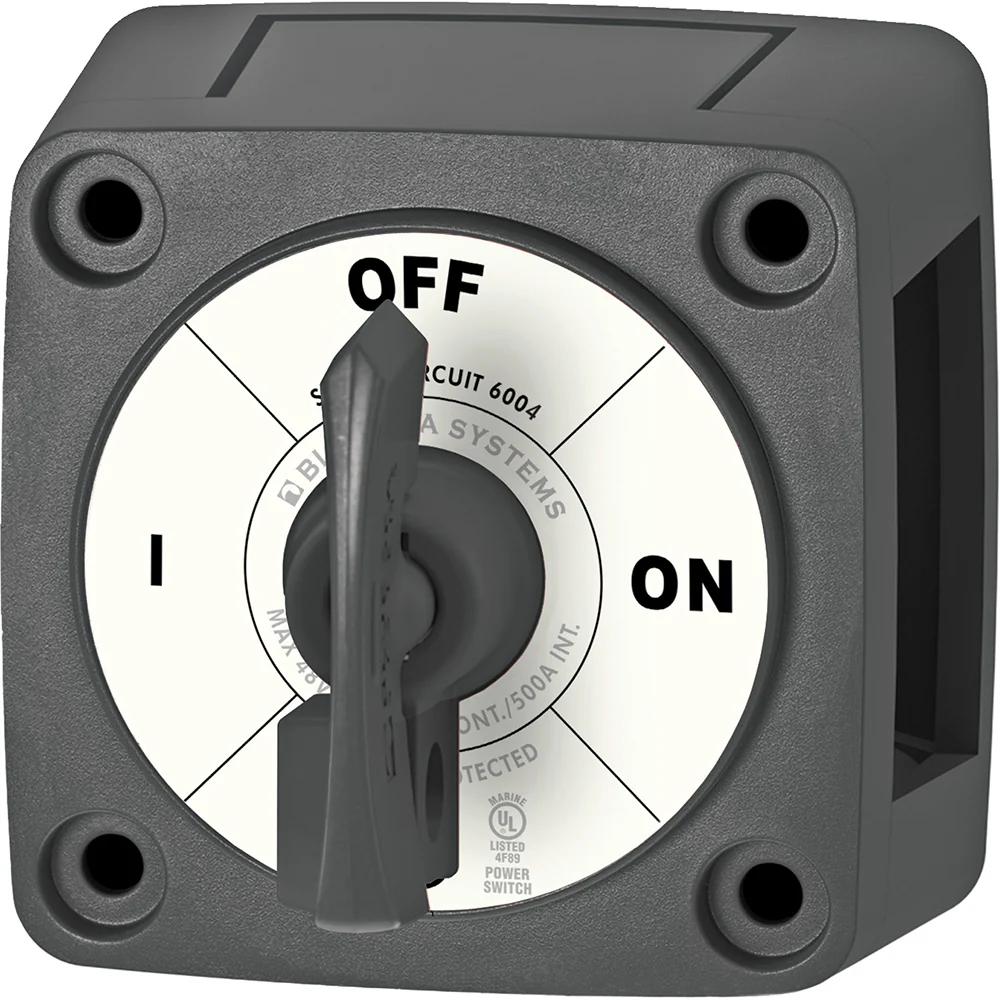

Blue Sea 6004200 Single Circuit ON-OFF w/Locking Key - Black [6004200]

Single Circuit ON-OFF with Locking Key - Black

300 Amps continuous rating for outboards and small gasoline or diesel engines

• Tin-plated copper studs for maximum conductivity and corrosion resistance

• Studs accept 3/8" (M10) ring terminals

• 7/8" (22 mm) stud length accepts multiple cable terminals

• Blue Sea Systems one-piece terminal stud design never loosens over time

• One-piece stainless flange nuts ensure safe and secure connections

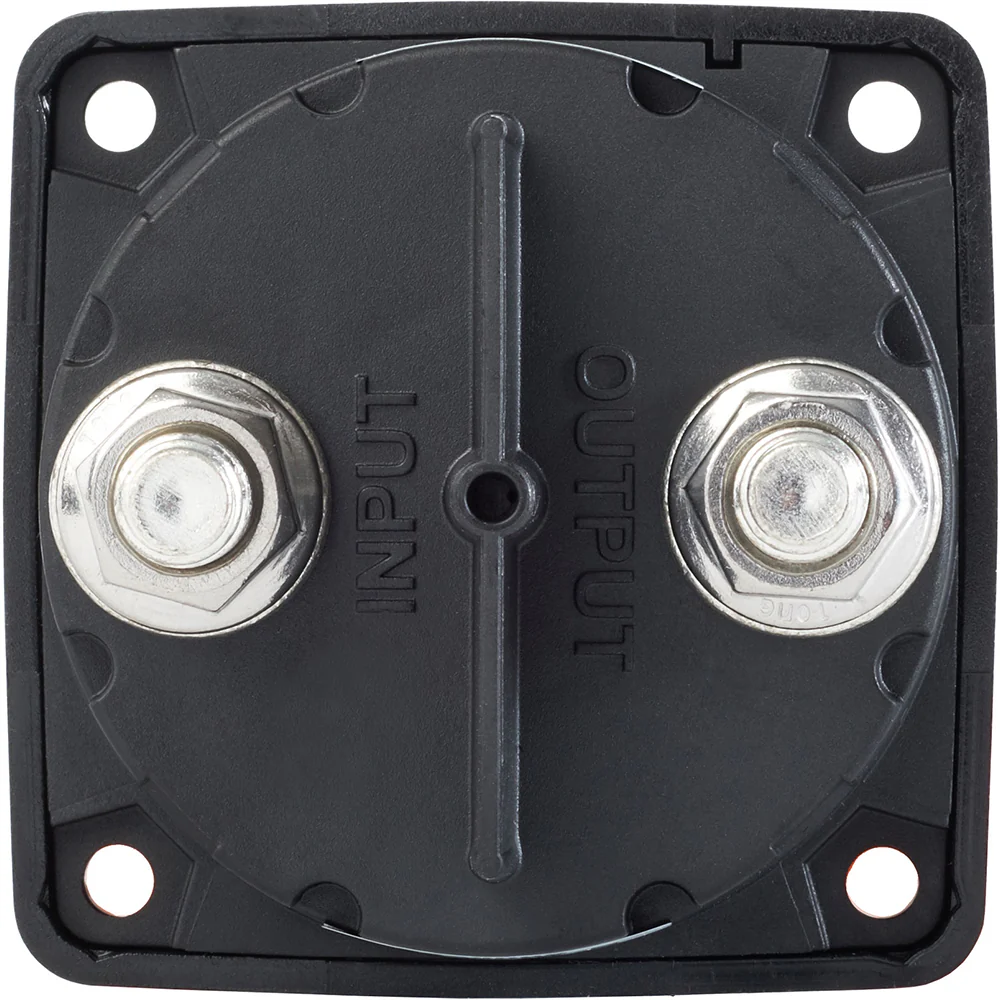

• Isolating cover protects rear contacts

• Breakout tabs allow wire access in any direction

Specifications:

• Switch Type: Single Circuit ON-OFF

• Color: Black

• Maximum Voltage: 48V DC

• Continuous Rating: 300A

• Intermittent Rating: 500A

• Cranking Rating 30 sec: 900A

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
