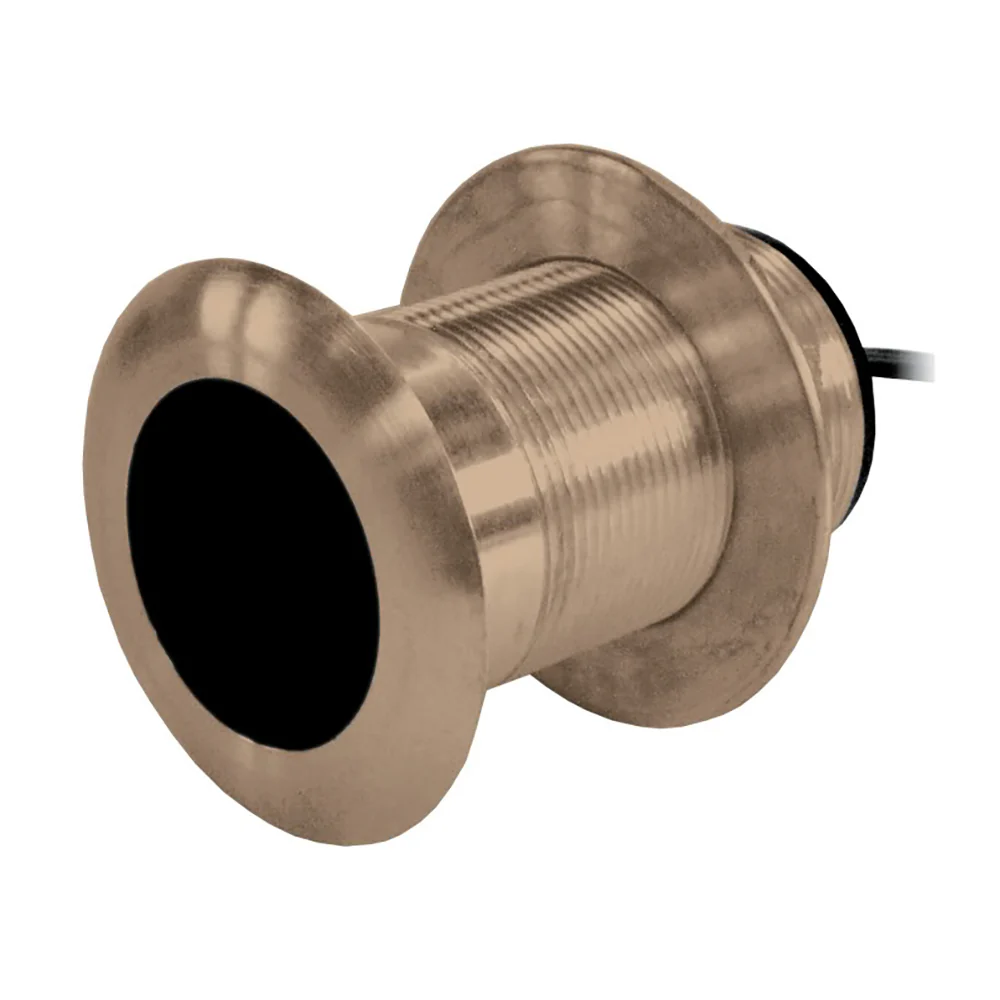

Airmar B117 Bronze 0 Depth Temp w/Ray Connector f/CP370 DSM300 [B117-DT-RAY]
B117 Bronze 0° Depth & Temp with Ray Connector for CP370 & DSM300
The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.
Features:
- Bronze Housing
- Depth and Temperature Only
- Usable Shaft Length: 66.5 mm (2.62”)
- Replacement nut—405
- 10 m (33’) cable length
- Boat Size: 8 m (25’) and up
- Ideal for center-console and trailered boats
- Frequency: 50/200 kHz
- Maximum Depth Range:
- 50 kHz: 800-1200 ft
- 200 kHz: 400-700 ft
- Cone: 50 kHz—45°, 200 kHz—12°
- RMS Power: 600 W
Original: $319.99
-65%$319.99
$112.00Airmar B117 Bronze 0 Depth Temp w/Ray Connector f/CP370 DSM300 [B117-DT-RAY]
B117 Bronze 0° Depth & Temp with Ray Connector for CP370 & DSM300
The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.
Features:
- Bronze Housing
- Depth and Temperature Only
- Usable Shaft Length: 66.5 mm (2.62”)
- Replacement nut—405
- 10 m (33’) cable length
- Boat Size: 8 m (25’) and up
- Ideal for center-console and trailered boats
- Frequency: 50/200 kHz
- Maximum Depth Range:
- 50 kHz: 800-1200 ft
- 200 kHz: 400-700 ft
- Cone: 50 kHz—45°, 200 kHz—12°
- RMS Power: 600 W
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
B117 Bronze 0° Depth & Temp with Ray Connector for CP370 & DSM300
The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.
Features:
- Bronze Housing
- Depth and Temperature Only
- Usable Shaft Length: 66.5 mm (2.62”)
- Replacement nut—405
- 10 m (33’) cable length
- Boat Size: 8 m (25’) and up
- Ideal for center-console and trailered boats
- Frequency: 50/200 kHz
- Maximum Depth Range:
- 50 kHz: 800-1200 ft
- 200 kHz: 400-700 ft
- Cone: 50 kHz—45°, 200 kHz—12°
- RMS Power: 600 W
